歡迎來到溫州昌力機械有限公司!

返回首頁

咨詢熱線:0577-65987363

復卷機系列當前位置:首頁復卷機系列

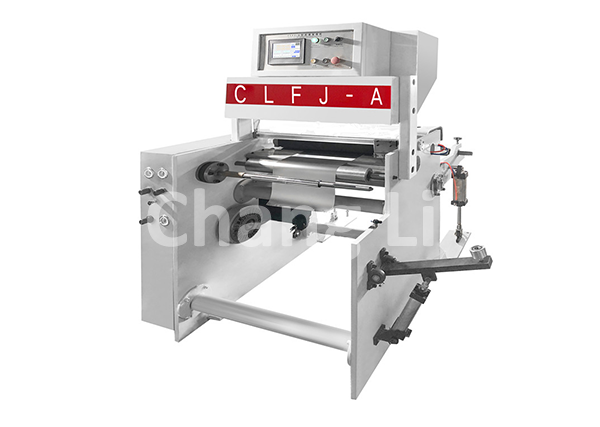

CLFJ-A型高速復卷機

發布日期:[2018-12-26]     點擊率:

用途:

該機是生產硬紙芯、軟紙芯、等小卷筒紙(禮品紙、廣告紙、墻紙、各種包裝紙)的專用設備。

特點:

放卷:氣壓提升式放卷架、連體式放卷架等

收卷:連續式氣漲軸、電腦控制自動充氣與打開(可任意調節收卷軸直徑)

切斷:采用無桿汽缸往返式自動隔斷

主控:伺服電機定長送料在高速運轉中保存高精度

具有定長精度高,收卷整齊,操作簡便,外型美觀,性能穩定等功能,還可以和全自動收縮包裝機配套形成生產線。



use:

This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).

Features:

Unwinding: air pressure lifting unwinding frame, one-piece unwinding frame, etc.

Winding: continuous air-up shaft, computer controlled automatic inflation and opening (can adjust the reel diameter arbitrarily)

Cut off: use rodless cylinder reciprocating automatic partition

Main control: Servo motor fixed length feeding, high precision during high speed operation

It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with automatic shrink packaging machine.



主要技術參數 Main Technical Parameters

機型 Model

CLFJ-A600

CLFJ-A800

CLFJ-A1000

卷材寬度 MAX.Parent Web Width

600mm

800mm

1000mm

放卷直徑 Max.parent Web Diameter

Φ600mm

Φ600mm

Φ600mm

收卷直徑 Max.Rewinding Diameter

Φ260mm

Φ260mm

Φ260mm

速度 Max.Machine Speed

10-150m/min

10-150m/min

10-150m/min

定長精度Fixed length accuracy

±5mm

±5mm

±5mm

總功率 Total Power

2KW

2.3KW

3KW

重量 Machine Weight

1000kg

1200kg

1500kg

外形尺寸 Overall Dimensions

工作電壓 Working Voltage

1301380×1600mm

二相220V50HZ

1300×1600×1600mm

二相220V50HZ

1300×1800×1600mm

二相220V50HZ

紙芯規格Paper core specification

20mm, 25mm, 38mm(or according to your requirement)
